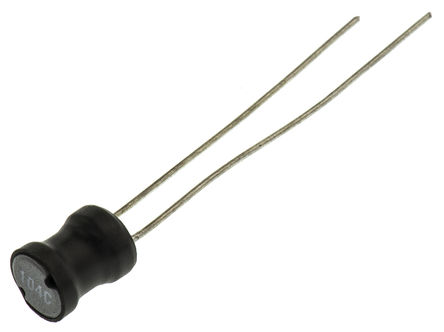

Image is for your reference only,please check specifications for details

22R104C - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC12046596
Category:
Inductor
Package:
Radial
Datasheet:
Datasheet 3D Model
Description:
MURATA POWER SOLUTIONS 22R104C Inductor, Power, 2200R Series, 100µH, 670mA, 0.39Ω, ± 10%
Stock Locations:
Availability:
781 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.66

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 22R104C is a miniature Radial Leaded Inductor with fully tinned leads. This 2200R series inductor features MIL-I-23053/5 class I sleeving and suitable for low to medium current applications. The small footprint makes this inductor ideal for high density applications where a chip inductor will not cope with the power requirement. Supports 1kHz frequency and ±10% inductance tolerance. Maximum DC current occurs when either the inductance falls to 90% of its nominal value or when its temperature rise reaches 30°C, whichever is sooner.
Low DC resistance
Backward compatible with Sn/Pb soldering systems

Show

22R104C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial
Current Rating	670 mA
Capacitance Tolerance	±10 %
Orientation	Vertical
Inductance	100 µH
Self Resonant Frequency	7 MHz
Q-Factor	160.0
Resistance	390 mΩ
Resonant Frequency	8.90 MHz
Inductance Tolerance	±10 %
Test Frequency	1 kHz
DC Resistance (DCR)	≤390 mΩ
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
Resistance (DC Max)	0.39 Ω
	Show
Size-Length	7.7 mm
Size-Height	10.5 mm
Lead Length	35.0 mm
Weight	1.3 g
Operating Temperature	-25℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
