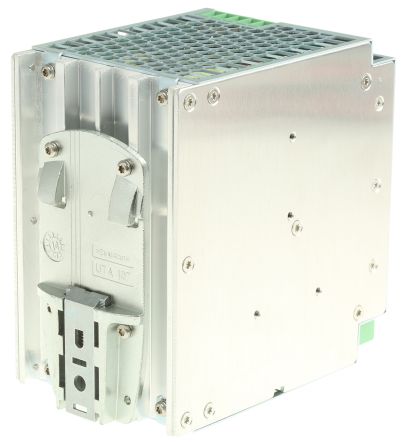

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Creates reliable power systems through the following features:
- **
- * Voltage Isolation to Increasing or Decreasing Voltage Levels**
- **
- * Boosting Voltage Over Long Wire Runs**
- **
- * Regulating Battery Voltage Output**
- **
- * Isolating Ground Loops**
- **
- * Selective Fuse Breaking (SFB) Technology**
- **
- * Power Boost, Providing Up to 125 Percent of Their Rated Output**
- **
- * Diagnostics Such as DC OK and Power Boost, the Status of the DC System**
- **
- * UL508 Listing, Class I, Div. 2 Approval
2320102 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Pins | 12 Pin |
| Case/Package | Module |
| Power Rating | 480 W |
| Number of Outputs | 1 Output |
| Output Voltage | 24 V |
| Output Current | 20 A |
| Output Power | 480 W |
| Switching Frequency | 0 kHz |
| Input Voltage (Max) | 32 V |
| Input Voltage (Min) | 18 V |
| Input Voltage (DC Max) | 32 V |
| Input Voltage (DC Min) | 18 v |
| Output Voltage (Max) | 29.5 VDC |
| Output Voltage (Min) | 18 VDC |
| Output Current (Max) | 20 A |
| Input Power (Max) | 400 W |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Input Voltage | 14V ~ 32V |
| Show | |
| Size-Length | 4.9 in |
| Size-Width | 3.2 in |
| Size-Height | 5.1 in |
| Weight | 1.7 kg |
| Operating Temperature | -25℃ ~ 60℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8504407012 |
| ECCN Code | EAR99 |
