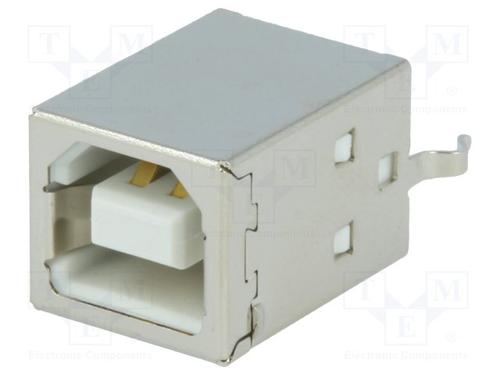

Image is for your reference only,please check specifications for details

2411 01 - Lumberg
Manufacturer:
Lumberg
ManyChip's Part#:
MC15277000
Category:
USB Connector
Datasheet:
Datasheet 3D Model
Description:
LUMBERG 2411 01 USB Connector, USB Type B, USB 2.0, Receptacle, 4Positions, Through Hole Mount, Vertical
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 15/08/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 2411 01 from Lumberg is a standard USB 2.0 type B chassis socket with vertical mounting on printed circuit board. USB 2.0 interface supports data transfer rate of up to 480Mbit/s.
Polybutylene terephthalate glass fibre reinforced body
Rated current is less than or equal to 1A
Rated voltage is 30VAC
Contact resistance is 30mohm
Mating with USB plug 2431
Temperature range from -55 °C to 85 °C
Insertion force
Withdrawal force >= 10N
Bronze with gold plated contacts

Show

2411 01 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Number of Contacts	4 Contact
Gender	Female
Contact Plating	Gold
Voltage Rating (AC)	30.0 V
Current Rating	1.00 A
Insulation Resistance	100 MΩ
Orientation	Vertical
Number of Positions	4 Position
Number of Mating Cycles	1500 Cycle
Current Rating (Max)	1 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating (Max)	30 VAC
Maximum Contact Resistance (Max)	30 mΩ
	Show
Size-Height	16.1 mm
Housing Color	White
Contact Material	Brass
Packaging	Tray
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
