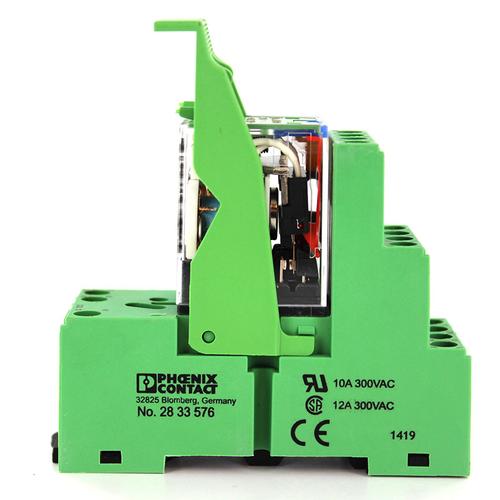

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Interface relay module, Series PR2-R**
- PR2-R series preassembled relay modules with screw/spring-cage connection consisting of a relay base, industrial relay with integrated LED and engage/disengage manual actuate lever and retaining bracket.
2834724 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Contacts Type | 4PDT |
| Load Current | 12 A |
| Input Current | 38 mA |
| Coil Voltage | 24 VDC |
| Coil Current | 38 mA |
| Coil Resistance | 631.58 Ω |
| Input Voltage (Max) | 24 VDC |
| Current Rating (Max) | 5 A |
| Coil Voltage (DC) | 24 V |
| Input Power (Max) | 1.25 kVA |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Voltage Rating (DC Max) | 250 V |
| Voltage Rating (AC Max) | 250 V |
| Show | |
| Size-Length | 86 mm |
| Size-Height | 78.5 mm |
| Contact Material | Silver Nickel |
| Operating Temperature | -25℃ ~ 60℃ |
| Product Lifecycle Status | Obsolete |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| HTS Code | 8536490050 |
| ECCN Code | EAR99 |
