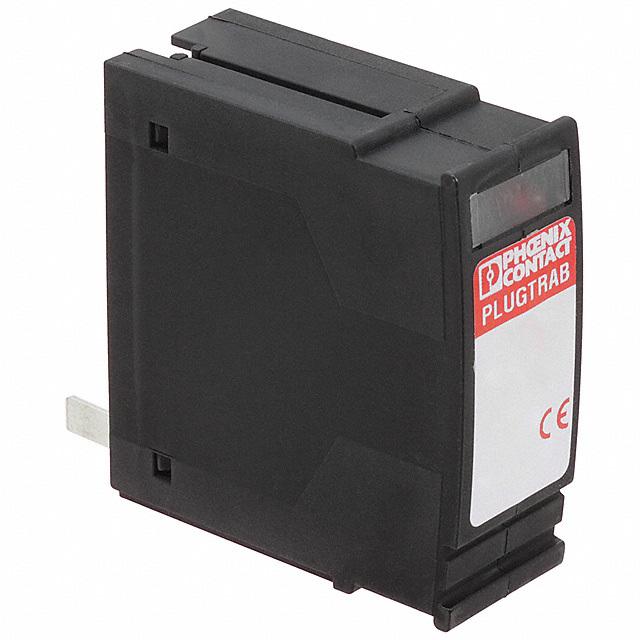

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- This product is for protection of single-phase power supplies in industrial applications. The DIN-rail mount feature makes it ideal for control cabinet applications. The pluggable surge protection elements allow hot-swap capability in the unlikely event of a plug failure.
- **Features:**
- * DIN-Rail Mounted
- * 10 kA Surge Current Rating
- * Diagnostic Monitoring of Protection Status, UL 1449-2nd Edition
2839318 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Base |
| Case/Package | Module |
| Voltage Rating (DC) | 550 V |
| Operating Voltage | 250 VAC |
| Current Rating | 2.50 mA |
| Number of Circuits | 1 Circuit |
| Number of Conductors | 8 Conductor |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 24 VAC |
| Supply Voltage | 24 VAC |
| Show | |
| Size-Length | 90 mm |
| Size-Height | 66 mm |
| Color | Black |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536308000 |
| ECCN Code | EAR99 |
