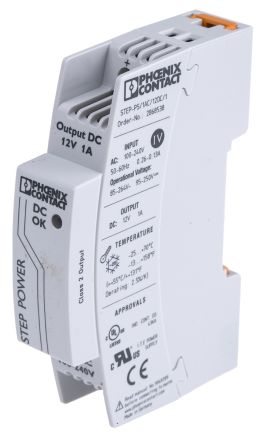

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Phoenix Contact"s completely redesigned STEP Power Supplies now include increased capacity and expanded features. This second generation of STEP Power Supplies creates additional mounting options for a broader range of industries. The new housing package mounts on to the DIN-rail or can be panel mounted through the housing"s unique DIN-rain clips.
- These new STEP Power Supplies" robust voltage versus current output characteristic allows the power supply to start-up heavier capacity loads without losing output capacity. With this new feature, the power supply better handles short circuit faults by protecting the output instead of turning off.
- * New Power Supply Family for Fitting Into Installation Distributors and Flat Operator Panels
- * Double Power Density Due to a High Level of Efficiency
- * Flexible Assembly: Snaps-On to DIN-Rail or Direct Panel Mounting
- * Worldwide Use Due to Wide Range Input
2868538 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Power Rating | 12 W |
| Number of Outputs | 1 Output |
| Output Voltage | 12 V |
| Output Current | 1 A |
| Output Power | 12 W |
| Isolation Voltage | 4 kV |
| Input Voltage (Max) | 264 VAC |
| Input Voltage (Min) | 85 VAC |
| Input Voltage (DC Max) | 250 V |
| Input Voltage (DC Min) | 95 V |
| Input Voltage (AC Max) | 264 V |
| Input Voltage (AC Min) | 85 V |
| Output Voltage (Max) | 12 VDC |
| Output Voltage (Min) | 12 VDC |
| Output Current (Max) | 1.8 A |
| Input Power (Max) | 22 W |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Input Voltage | 100VAC ~ 240VAC |
| Show | |
| Size-Length | 61 mm |
| Size-Width | 18 mm |
| Size-Height | 90 mm |
| Weight | 100 g |
| Operating Temperature | -25℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8504407001 |
| ECCN Code | EAR99 |
