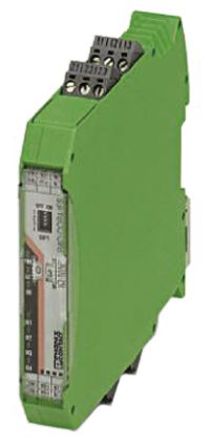

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Digital I/O extension module with 4 digital relay outputs (6 A, 250 VAC/ 24 VDC), with screw connection, incuding. DIN rail connector.
- **Features:**
- * Channel-to-Channel Electrical Isolation
- * Extended Temperature Range: –40 to +70 °C
- * Easy Module Replacement Even During Operation (Hot Swap)
- * Digital Wide Range Outputs (0 to 250 VAC/VDC)
- * Suitable for ATEX Zone 2
- * Easy Startup via Thumbwheel
2901536 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw Terminals, DIN Rail |
| Case/Package | Module |
| Number of Outputs | 4 Output |
| Output Current | 6 A |
| Input Current | 55 mA |
| Input Voltage (Max) | 30.5 VDC |
| Input Voltage (Min) | 19.2 VDC |
| Input Current (Min) | 55 mA |
| Load Current (Max) | 5 A |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 19.2VDC ~ 30.5VDC |
| Input Voltage | 19.2VDC ~ 30.5VDC |
| Show | |
| Size-Length | 99 mm |
| Size-Width | 17.5 mm |
| Weight | 219.99 g |
| Operating Temperature | -40℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
