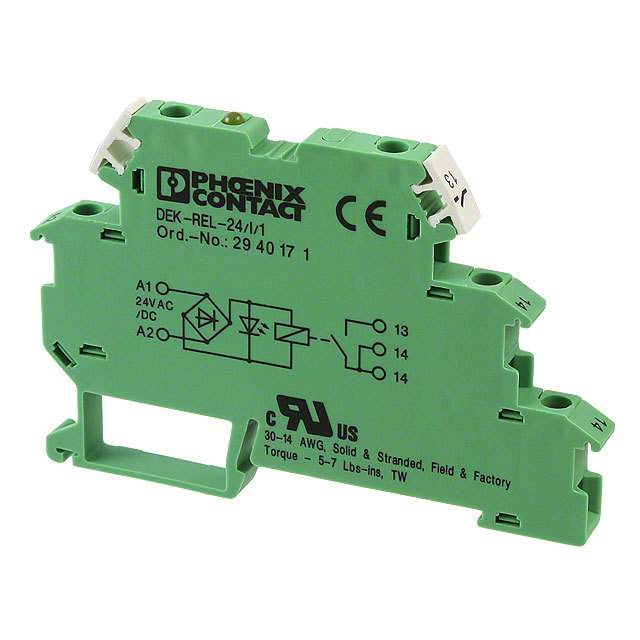

Image is for your reference only,please check specifications for details
- 2940171 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC76779790
-
Category:Power Relay
-
Package:-
-
Datasheet:Datasheet 3D Model
-
Description:Electromechanical Relay 24VDC 24VAC 3A SPST-NO (( 6.2mm 80mm 56mm)) DIN Rail Miniature Relay
-
Stock Locations:
-
Availability:96 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 82.54
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Relay Terminal Blocks - DEK-REL**
- DEK-REL relay terminal blocks, with soldered-in miniature relays for small to medium loads.
2940171 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw |
| Number of Pins | 5 Pin |
| Case/Package | - |
| Voltage Rating (DC) | 125 V |
| Voltage Rating (AC) | 250 V |
| Input Current | 6.5 mA |
| Power Consumption | 72.0 W |
| Contact Current Rating | 3 A |
| Coil Voltage | 24VAC, 24VDC |
| Coil Current | 6.5 mA |
| Coil Voltage (AC) | 24 V |
| Current Rating (Max) | 3 A |
| Coil Voltage (DC) | 24 V |
| Input Power (Max) | 750 VA |
| Operating Temperature (Max) | 50 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating (DC Max) | 125 V |
| Voltage Rating (AC Max) | 250 V |
| Show | |
| Size-Length | 80 mm |
| Size-Width | 56 mm |
| Size-Height | 56 mm |
| Contact Material | Silver Nickel |
| Operating Temperature | -20℃ ~ 50℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536410060 |
| ECCN Code | EAR99 |
