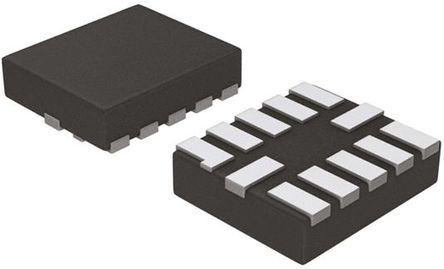

Image is for your reference only,please check specifications for details

NCN1154MUTAG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC15611431
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
UQFN-12
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCN1154MUTAG Analogue Switch, Single Channel, DP3T, 1Channels, 7.5Ω, 2.7V to 5V, UQFN, 12Pins
Stock Locations:
Availability:
2,828 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.5

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NCN1154MUTAG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	12 Pin
Case/Package	UQFN-12
Halogen Free Status	Halogen Free
Number of Channels	1 Channel
Number of Positions	12 Position
Bandwidth	820 MHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	820 MHz
Supply Voltage	2.7V ~ 5V
	Show
Size-Length	2 mm
Size-Width	1.7 mm
Size-Height	0.5 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
