Description

description
The TLV1117 is a positive low-dropout voltage regulator, designed to provide up to 800 mA of output current. The device is available in 1.5 V, 1.8 V, 2.5 V, 3.3 V, 5 V, and adjustable output voltage options. All internal circuitry is designed to operate down to 1-V input-to-output differential. Dropout voltage is specified at a maximum of 1.3 V at 800 mA, decreasing at lower load currents. 1.5 V, 1.8 V, 2.5 V, 3.3 V, 5 V, and Adjustable
Output Voltage Options
Output Current of 800 mA
Operates Down to 1.1-V Dropout
Specified Dropout Voltage at Multiple Current Levels
0.2% Line Regulation Maximum
0.4% Load Regulation Maximum

Show

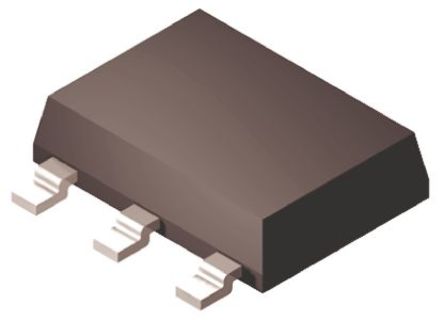

TLV1117IDCY Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Number of Outputs	1 Output
Output Voltage	1.25V ~ 13.7V
Output Current	800 mA
Quiescent Current	5 mA
Output Capacitor Type	Tantalum
voltage rating	1.2V @800mA
Number of Regulated Outputs	1 Output
Input Voltage (Max)	15 V
Input Voltage (Min)	2.7 V
Output Voltage (Max)	13.7 V
Output Voltage (Min)	1.238 V
Output Current (Max)	800 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	2.7V ~ 15V
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
