LADN31 Schneider Electric - Signal Relays

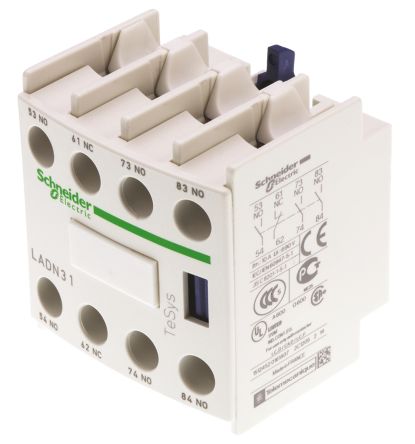

Image is for your reference only,please check specifications for details

LADN31 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC14153700
Category:
Signal Relays
Package:
600
Datasheet:
Datasheet 3D Model
Description:
SCHNEIDER ELECTRIC / TELEMECANIQUE LADN31 – блок контактов для выключателей, используемый с контакторами серии TeSys D и F. Мощность: 10А; напряжение: 600В. Контакты крепятся с помощью винтов; количество полюсов: 4.
Stock Locations:
Availability:
674 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 29.06

Updated at 01/11/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

LADN31 – это вспомогательный блок контактов, предназначенный для использования с контакторами серии TeSys D и F.
Конфигурация контактов: 3ПН + 1НЦ.
Нормальное рабочее напряжение: 690ВAC.
Минимальный ток переключения: 5МА при напряжении 17В.
Контакты крепятся с помощью винтов.
Соответствие стандартам UL и CSA.
Инстантное работание вспомогательных контактов.

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Case/Package	600
Number of Contacts	4 Contact
Current Rating	10 A
Contacts Type	4PST
Contact Current Rating	10 A
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-5 ℃
	Show
Size-Height	47 mm
Operating Temperature	-5℃ ~ 60℃
Product Lifecycle Status	Active
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
