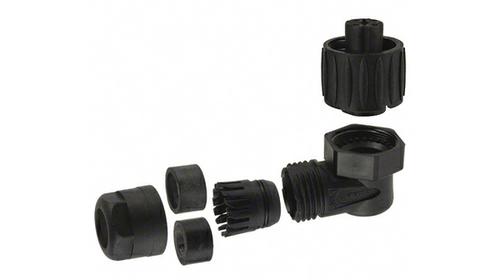

Image is for your reference only,please check specifications for details

C016 20F003 100 12 - Amphenol
Manufacturer:
Amphenol
ManyChip's Part#:
MC11881833
Category:
Circular Connector, Connector Circular
Datasheet:
Datasheet 3D Model
Description:
Connector: circular; plug; PIN:4; female; screw terminal; 400V; 16A
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

In design and conception the Eco/Mate program meets the high requirements for applications in industrial technology. Easy operation, reduced dimensions and a more robust design are only a few of the features of the series. The connector"s main area of application is in the fields of plant construction and machine building. The connector is used for measuring and controlling applications as well as for power supply technology.
**Features:**
* New Cable Screw Connection with Clamping Ring
* Strain Relief and Mounted Gasket All In One Component
* Ergonomically Shaped Handle for a Better Grip and Safer Handling
* Fastening for the Protective Caps on the Receptacle Housing
* One Cable Housing for All Cable Diameters (6 mm-12.5 mm)
* UL Rated: 3 + PE — 400 V, 16 A; 6 + PE — 250 V, 13 A
* Protection Class IP 65/67 in Mated Condition in Accordance with DIN EN 60526
* Compatible with, but Supercedes the C016-1 Series
* PE is Additional Ground Contact, Mate Before Breaks

Show

C016 20F003 100 12 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	4 Pin
Number of Contacts	4 Contact
Gender	Female
Wire Gauge	14.0 AWG
Contact Plating	Silver, Gold
Current Rating	16 A
Orientation	Right Angle
Number of Positions	4 Position
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	400 V
	Show
Size-Length	60 mm
Size-Height	57 mm
Color	Black
Insulation Material	Plastic
Operating Temperature	-40℃ ~ 100℃
Housing Material	Nylon 6/6
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
