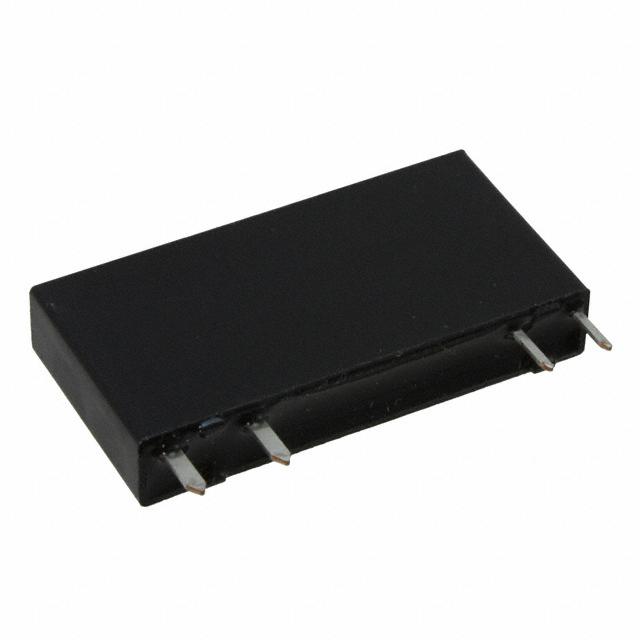

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Solid State Relay Modules - PLC-OPT**
- PLC solid state relay with push-in connection for mounting on DIN rail and integrated protection circuit.
2966605 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | PCB |
| Number of Pins | 4 Pin |
| Case/Package | SIP-4 |
| Output Current | 3000 mA |
| Load Current | 3 A |
| Input Current | 3 mA |
| Power Dissipation | 180 mw |
| Power Consumption | 140 W |
| Coil Voltage | 60.0 V |
| Output Voltage (Max) | 33 V |
| Output Current (Max) | 3 A |
| Input Current (Min) | 3 mA |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Power Dissipation (Max) | 180 mW |
| Input Voltage | 60 VDC |
| Show | |
| Size-Length | 28 mm |
| Size-Width | 5 mm |
| Size-Height | 28 mm |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536410060 |
| ECCN Code | EAR99 |
