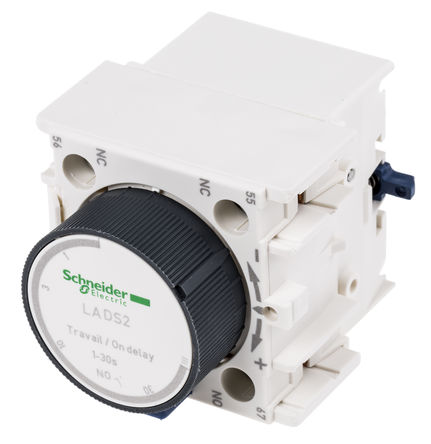

LADS2 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC12892564
Category:
Industrial Relay
Datasheet:
Datasheet 3D Model
Description:
Auxiliary Contact Block, Time Delay, 690VAC, 10A, 1 NO/1NC, Panel, TeSys D
Stock Locations:
Availability:
21 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 122.76

Updated at 18/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LADS2 from Schneider Electric is a TeSys time delay auxiliary contact block with 1NO + 1NC pole contact composition. It is approved by CSA, UL, BS 4794, EN 60947-5-1, IEC 60947-5-1, NF C 63-140 and VDE 0660 standards.
Front mountable on-delay timer
Time delay range from 1sec to 30sec
Rated insulation voltage of 690V conforming to IEC 60947-5-1 standard
Rated operational voltage of 690VAC at 25Hz to 400Hz
Conventional free air thermal current of 10A at less than or equal to 60°C
Irms rated making capacity of 250A at <= 690VDC and 140A at <= 690VAC conforming to IEC 60947-5-1
Mechanical durability of 5Mcycles
Minimum switching current of 5mA and switching voltage of 17V
Operating ambient air temperature range from -5°C to 60°C
IP2x degree of protection conforming to VDE 0106

Show

LADS2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail
Number of Contacts	2 Contact
Current Rating	10.0 A
Contacts Type	DPDT
Contact Current Rating	10 A
Switching Current (Max)	100 A
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-5 ℃
Input Voltage	690 VAC
	Show
Size-Height	47.0 mm
Operating Temperature	-5℃ ~ 60℃
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
