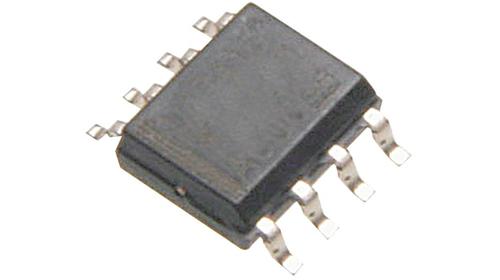

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IRF7456PBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Voltage Rating (DC)	20.0 V
Current Rating	16.0 A
Drain to Source Resistance (on) (Rds)	6.5 mΩ
Polarity	N-Channel
Power Dissipation	2.5 W
Part Family	IRF7456
Threshold Voltage	2 V
Drain to Source Voltage (Vds)	20 V
Breakdown Voltage (Drain to Source)	20.0 V
Continuous Drain Current (Ids)	16.0 A
Rise Time	25 ns
Input Capacitance (Ciss)	3640pF @15V(Vds)
Input Power (Max)	2.5 W
Fall Time	52 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2500 mW
	Show
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
