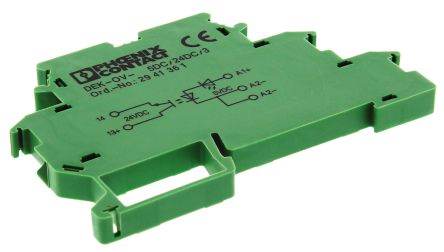

Image is for your reference only,please check specifications for details
- 2941361 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC55588333
-
Category:Solid State Relay
-
Package:Module
-
Datasheet:Datasheet 3D Model
-
Description:Оптический развязывающий элемент, тип: вход 5 В пост. тока, 11 мА; выход 3–30 В пост. тока, 3 А; провод 24–14 AWG; крепление на рейку; зеленый пластиковый герметичный корпус; шаг 6,2 мм
-
Stock Locations:
-
Availability:116 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 180.03
Updated at 17/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **dc/dc, dc/ac и ac/dc оптроны**
- Эти оптроны для монтажа на DIN-рейку обеспечивают идеальный способ подключения сигналов включения/выключения к оборудованию или от него, обеспечивая при этом гальваническую развязку между своими входами и выходами. Другими словами, их можно использовать для защиты оборудования путем электрической изоляции его входов, выходов или того и другого. Версии постоянного/переменного и переменного/постоянного тока также обеспечивают способ подключения (с изоляцией) управляющих напряжений переменного и постоянного тока.
2941361 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw |
| Case/Package | Module |
| Pin Pitch | 6.2 mm |
| Current Rating | 3 A |
| Load Current | 3 A |
| Input Current | 11 mA |
| Isolation Voltage | 2.5 kV |
| Coil Voltage | 5.00 V |
| Input Current (Min) | 11 mA |
| Maximum Forward Voltage (Max) | 5 V |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating | 5 VDC |
| Input Voltage | 5 VDC |
| Show | |
| Size-Length | 80 mm |
| Size-Width | 6.2 mm |
| Size-Height | 56 mm |
| Operating Temperature | -20℃ ~ 60℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536410060 |
| ECCN Code | EAR99 |
