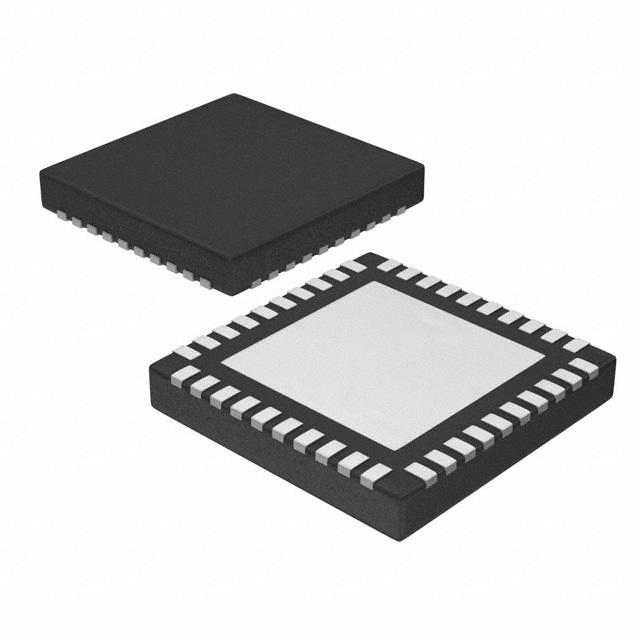

Image is for your reference only,please check specifications for details

CC2533F96RHAR - TI
Manufacturer:
TI
ManyChip's Part#:
MC25961581
Category:
Interface IC, Interface Controller
Package:
VQFN-40
Datasheet:
Datasheet 3D Model
Description:
MCU 8Bit CC2533Fx 8051 CISC 96KB Flash 2.5V/3.3V 40Pin VQFN EP T/R
Stock Locations:
Availability:
250 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.43

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The CC2533 is an optimized system-on-chip (SoC) solution for IEEE 802.15.4 based remote-control systems. It enables single-chip remote controls to be built with low bill-of-material cost when used as a flexible SoC. It also provides a simple path to adding RF4CE capability to a device or target when used in the wireless network processor configuration of the RemoTI™ RF4CE stack. Robust network nodes can be built with very low total bill-of-material costs.
FEATURES
• RF/Layout
– 2.4-GHz IEEE 802.15.4 Compliant RF Transceiver
– Excellent Receiver Sensitivity and Robustness to Interference
– Programmable Output Power Up to 4.5 dBm
– Boost-Mode TX at 7 dBm
– Very Few External Components
– Only a Single Crystal Needed for Asynchronous Networks
– Space-Saving 6-mm × 6-mm QFN40 Package
– Suitable for Systems Targeting Compliance With Worldwide Radio-Frequency Regulations: ETSI EN 300 328 and EN 300 440 (Europe), FCC CFR47 Part 15 (US), and ARIB STD-T-66 (Japan)
– Pin- and Software-Compatible With the CC2530Fxxx Series
• Low Power
– Active-Mode RX (CPU Idle): 25 mA
– Active Mode TX at 0 dBm (CPU Idle): 28.5 mA
– Power Mode 1 (4 ms Wake-Up): 0.2 mA
– Power Mode 2 (Sleep Timer Running): 1 mA
– Power Mode 3 (External Interrupts): 0.5 mA
– Wide Supply-Voltage Range (2 V–3.6 V)
• Microcontroller
– High-Performance and Low-Power 8051 Microcontroller Core With Code Prefetch
– 64- or 96-KB In-System-Programmable Flash
– 4- or 6-KB RAM With Retention in All Power Modes
– Hardware Debug Support
• Peripherals
– Powerful Five-Channel DMA
– IEEE 802.15.4 MAC Timer, General-Purpose Timers (One 16-Bit, Two 8-Bit)
– IR Generation Circuitry
– 32-kHz Sleep Timer With Capture
– CSMA/CA Hardware Support
– Accurate Digital RSSI/LQI Support
– Battery Monitor Comparator
– Random Number Generation
– AES Security Coprocessor
– Two Powerful USARTs With Support for UART and SPI
– I2C Interface
– 23 General-Purpose I/O Pins
– Watchdog Timer
• Development Tools
– CC2533 Remote Control Development Kit for RF4CE
– CC2533 Development Kit
– CC2533EMK Evaluation Modules
– SmartRF™ Software
– Packet Sniffer
– IAR Embedded Workbench™ Available
APPLICATIONS
• ZigBee™ RF4CE Remote Control Target and Device
• 2.4-GHz IEEE 802.15.4 Systems Based on TIMAC or SimpliciTI™ Network Protocol
• Consumer Electronics
• Electronic Shelf Labeling

Show

CC2533F96RHAR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	40 Pin
Case/Package	VQFN-40
Frequency	2.4 GHz
Clock Speed	24.0 MHz
RAM Memory Size	6 KB
Output Power	4.5 dBm
Standby Current	400 nA
Antenna Connection	Differential
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2V ~ 3.6V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	5A992.c
HK STC License	NLR
