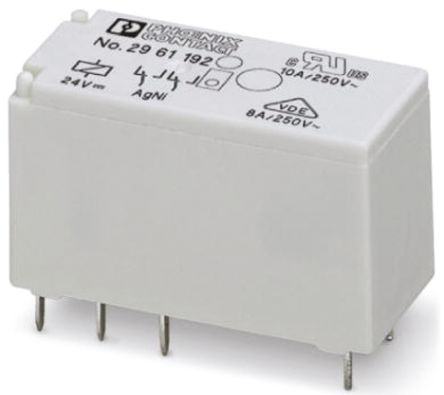

Image is for your reference only,please check specifications for details
- 2961435 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC58345267
-
Category:Power Relay
-
Package:DIP
-
Datasheet:Datasheet 3D Model
-
Description:Electromechanical Relay 24VAC 350Ω 8A DPDT (( 29mm 12.7mm 15.7mm)) THT Miniature Relay
-
Stock Locations:
-
Availability:4 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.36
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **PLC-RSC Series**
- PLC Interface single- and double-pole relays, and opto-couplers, having the same profile. This allows the modules to be installled in any configuration with a common bridging system and using the same accessories. The V8 adapter connects 8 relays or opto-couplers to a 15 way D-SUB cable.
2961435 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP |
| Voltage Rating (DC) | 250 V |
| Voltage Rating (AC) | 250 V |
| Contact Current Rating | 8 A |
| Coil Voltage | 24 VAC |
| Coil Current | 24 mA |
| Coil Voltage (AC) | 24 V |
| Coil Resistance | 350 Ω |
| Current Rating (Max) | 8 A |
| Input Power (Max) | 2 KVA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (DC Max) | 250 V |
| Voltage Rating (AC Max) | 250 V |
| Show | |
| Size-Length | 29 mm |
| Size-Width | 15.7 mm |
| Size-Height | 12.7 mm |
| Contact Material | Silver Nickel |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536410050 |
| ECCN Code | EAR99 |
