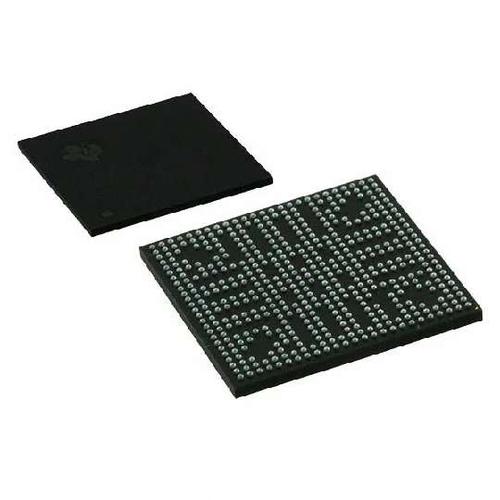

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * AM3517/05 Sitara Processor: * MPU Subsystem * 600-MHz Sitara ARM Cortex-A8 Core * NEON SIMD Coprocessor and Vector Floating-Point (FP) Coprocessor * Memory Interfaces: * 166-MHz 16- and 32-Bit mDDR/DDR2 Interface with 1GB of Total Addressable Space * Up to 83 MHz General-Purpose Memory Interface Supporting 16-Bit-Wide Multiplexed Address/DataBus * 64KB of SRAM * 3 Removable Media Interfaces [MMC/SD/SDIO] * IO Voltage: * mDDR/DDR2 IOs: 1.8V * Other IOs: 1.8V and 3.3V * Core Voltage: 1.2V * Commercial and Extended Temperature Grade (operating restrictions apply) * 16-Bit Video Input Port Capable of Capturing HD Video * HD Resolution Display Subsystem * Serial Communication * High-End CAN Controller * 10/100 Mbit Ethernet MAC * USB OTG Subsystem with Standard DP/DM Interface [HS/FS/LS] * Multiport USB Host Subsystem [HS/FS/LS] * 12-Pin ULPI or 6-, 4-, or 3-Pin Serial Interface * Four Master and Slave Multichannel Serial Port Interface(McSPI) Ports * Five Multichannel Buffered Serial Ports (McBSPs) * 512-Byte Transmit and Receive Buffer (McBSP1/3/4/5) * 5-KB Transmit and Receive Buffer (McBSP2) * SIDETONE Core Support (McBSP2 and McBSP3 Only)For Filter, Gain, and Mix Operations * 128-Channel Transmit and Receive Mode * Direct Interface to I2S and PCM Device and TDM Buses * HDQ/1-Wire Interface * 4 UARTs (One with Infrared Data Association [IrDA] and Consumer Infrared [CIR] Modes) * 3 Master and Slave High-Speed Inter-Integrated Circuit (I2C) Controllers * Twelve 32-bit General-Purpose Timers * One 32-bit Watchdog Timer * One 32-bit 32-kHz Sync Timer * Up to 186 General-Purpose I/O (GPIO) Pins * Display Subsystem * Parallel Digital Output * Up to 24-Bit RGB * Supports Up to 2 LCD Panels * Support for Remote Frame Buffer Interface (RFBI) LCD Panels * Two 10-Bit Digital-to-Analog Converters (DACs) Supporting * Composite NTSC/PAL Video * Luma/Chroma Separate Video (S-Video) * Rotation of 90, 180, and 270 Degrees * Resize Images From 1/4x to 8x * Color Space Converter * 8-Bit Alpha Blending * Video Processing Front End (VPFE) 16-Bit Video Input Port * RAW Data Interface * 75-MHz Maximum Pixel Clock * Supports REC656/CCIR656 Standard * Supports YCbCr422 Format (8-Bit or 16-Bit with Discrete Horizontal and Vertical Sync Signals) * Generates Optical Black Clamping Signals * Built-in Digital Clamping and Black Level Compensation * 10-Bit to 8-Bit A-law Compression Hardware * Supports up to 16K Pixels (Image Size) in Horizontal and Vertical Directions * System Direct Memory Access (sDMA) Controller (32 Logical Channels withConfigurable Priority) * Comprehensive Power, Reset, and Clock Management * ARM Cortex-A8 Memory Architecture * ARMv7 Architecture * In-Order, Dual-Issue, Superscalar Microprocessor Core * ARM NEON Multimedia Architecture * Over 2x Performance of ARMv6 SIMD * Supports Both Integer and Floating-Point SIMD * Jazelle RCT Execution Environment Architecture * Dynamic Branch Prediction with Branch Target Address Cache, Global History Buffer and 8-Entry Return Stack * Embedded Trace Macrocell [ETM] Support for Noninvasive Debug * 16KB of Instruction Cache (4-Way Set-Associative) * 16KB of Data Cache (4-Way Set-Associative) * 256KB of L2 Cache
AM3505AZCN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 491 Pin |
| Case/Package | LFBGA-491 |
| Frequency | 600 MHz |
| Supply Voltage (DC) | 1.15V (min) |
| Number of Positions | 491 Position |
| Clock Speed | 600 MHz |
| RAM Memory Size | 65536 B |
| Number of Bits | 32 Bit |
| Number of UARTs | 4 UART |
| Operating Temperature (Max) | 90 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Supply Voltage (Max) | 1.23 V |
| Supply Voltage (Min) | 1.152 V |
| Show | |
| Operating Temperature | 0℃ ~ 90℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | 3A991.a.2 |
| HK STC License | NLR |
