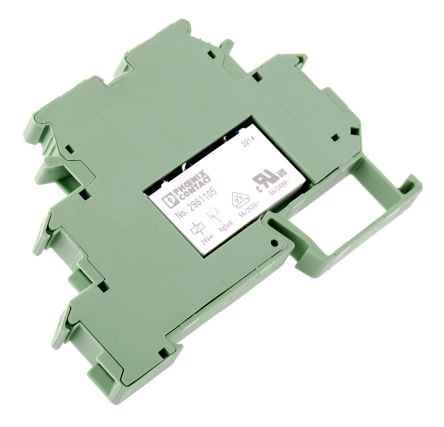

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Relay Terminal Block, 24 VDC Coil Voltage, 80 mm Length and 6.2 mm Width
- * Soldered-in miniature power relay
- AgSnO contact material. 24 VDC input voltage.
2964500 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Pins | 5 Pin |
| Case/Package | Module |
| Voltage Rating (DC) | 250 V |
| Voltage Rating (AC) | 250 V |
| Operating Voltage | 250V (max) |
| Current Rating | 6 A |
| Contacts Type | SPDT |
| Load Current | 6.00 A |
| Contact Current Rating | 6 A |
| Coil Voltage | 24 VDC |
| Coil Current | 9 mA |
| Coil Resistance | 2.67 KΩ |
| Current Rating (Max) | 6 A |
| Coil Voltage (DC) | 24 V |
| Input Power (Max) | 1.5 KVA |
| Switching Current (Max) | 6 a |
| Operating Temperature (Max) | 50 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Show | |
| Size-Length | 80 mm |
| Size-Width | 56 mm |
| Size-Height | 56 mm |
| Contact Material | Silver Tin Oxide |
| Operating Temperature | -20℃ ~ 50℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| HTS Code | 8536410060 |
| ECCN Code | EAR99 |
