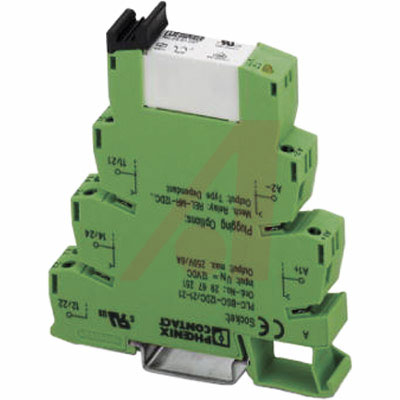

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- PLC-RELAY Series: Terminal Block with Plug-in Relay or SSR
- The PLC-RELAY is the only pluggable quarter inch terminal block, which accepts either a solid-state relay or an electro-mechanical relay. Using only one part number, you are able to order both the base terminal block and the pluggable relay as a single unit. The PLC-RELAY is also available with switching capacities up to 10 A at 250 VAC.
- The PLC-RELAY now also available in both sensor and actuator versions. In these versions you can connect sensors and actuators to the base terminal blocks to eliminate costly wiring and additional output terminal blocks. The preceding variations are only a few of the possibilities that are available. There are now over 100 variations available in different configurations and ratings.
- Electromechanical & Solid-State Relay
- * Universal — Input or Output Application
- * Input Specialist — Designed Specifically for 3 Wire Input Applications
- * Output Specialist — Designed Specifically for 2 Wire Output Applications
- * High Current / Inrush
- Electromechanical Only
- * 125 VDC Electro-Mechanical PLC Relays 3
- * 5 VDC PLC Relay Base Terminal Block and Plug in Relays
2967086 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw Terminals |
| Voltage Rating (DC) | 250 V |
| Voltage Rating (AC) | 250 V |
| Current Rating | 6 A |
| Contacts Type | DPDT |
| Contact Current Rating | 6 A |
| Coil Voltage | 110 V |
| Coil Voltage (AC) | 120 V |
| Current Rating (Max) | 6 A |
| Coil Voltage (DC) | 110 V |
| Input Power (Max) | 1.5 KVA |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Voltage Rating | 250 VAC |
| Voltage Rating (DC Max) | 250 V |
| Voltage Rating (AC Max) | 250 V |
| Show | |
| Size-Length | 80 mm |
| Size-Width | 94 mm |
| Size-Height | 94 mm |
| Contact Material | Silver Nickel |
| Operating Temperature | -25℃ ~ 60℃ |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536490050 |
| ECCN Code | EAR99 |
