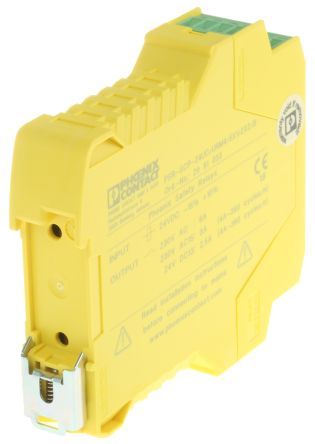

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **PSR Safety Relay Extension Units**
- The PSR safety relay extension units are for contact expansion.
2981033 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw |
| Number of Contacts | 6 Contact |
| Current Rating | 3 A |
| Number of Rows | 4 Row |
| Power Rating | 144 W |
| Number of Outputs | 7 Output |
| Number of Circuits | 6 Circuit |
| Number of Channels | 1, 2 Channel |
| Contact Current Rating | 3 A |
| Coil Voltage | 24 VDC |
| Coil Current | 47 mA |
| Coil Voltage (AC) | 24 V |
| Coil Voltage (DC) | 24 V |
| Operating Temperature (Max) | 55 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating | 250 VAC |
| Voltage Rating (DC Max) | 250 V |
| Voltage Rating (AC Max) | 250 V |
| Operating Voltage (Max) | 24VDC, 24VAC |
| Supply Voltage | 250VAC, 250VDC |
| Show | |
| Size-Length | 22.5 mm |
| Size-Width | 22.5 mm |
| Size-Height | 114.5 mm |
| Operating Temperature | -20℃ ~ 55℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536490050 |
| ECCN Code | EAR99 |
