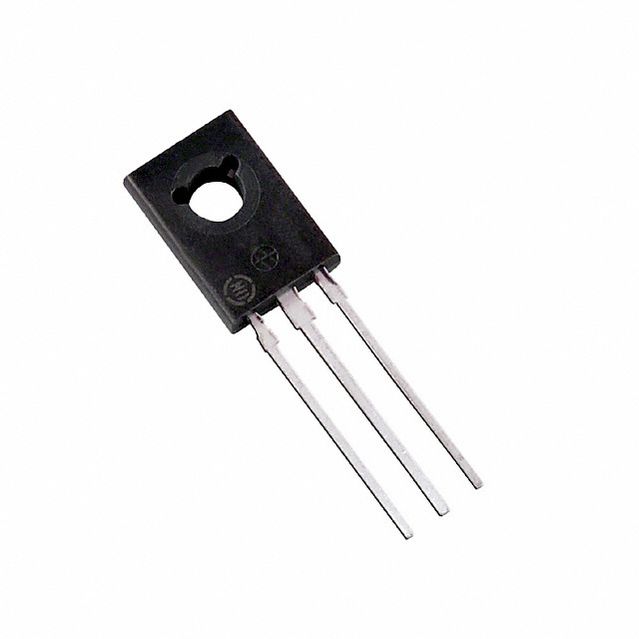

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Complementary Silicon Power Plastic Transistors
These devices are designed for low voltage, low-power, high-gain audio amplifier applications.
Features
• Collector-Emitter Sustaining Voltage - VCEO(sus) = 25 Vdc (Min) @ IC = 10 mAdc
• High DC Current Gain - hFE = 70 (Min) @ IC = 500 mAdc
= 45 (Min) @ IC = 2.0 Adc
= 10 (Min) @ IC = 5.0 Adc
• Low Collector-Emitter Saturation Voltage - VCE(sat) = 0.3 Vdc (Max) @ IC = 500 mAdc = 0.75 Vdc (Max) @ IC = 2.0 Adc
• High Current-Gain - Bandwidth Product - fT = 65 MHz (Min) @ IC = 100 mAdc
• Annular Construction for Low Leakage - ICBO = 100 nAdc @ Rated VCB
• Pb-Free Packages are Available

Show

MJE210 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-126-3
Voltage Rating (DC)	-25.0 V
Current Rating	-5.00 A
Polarity	Dual P-Channel
Power Dissipation	15.0 W
Breakdown Voltage (Collector to Emitter)	40 V
Continuous Collector Current	5A
hFE Min	45 @2A, 1V
hFE Max	180
Input Power (Max)	15 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	15000 mW
	Show
Material	Silicon
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Bulk
Minimum Packing Quantity	500
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
