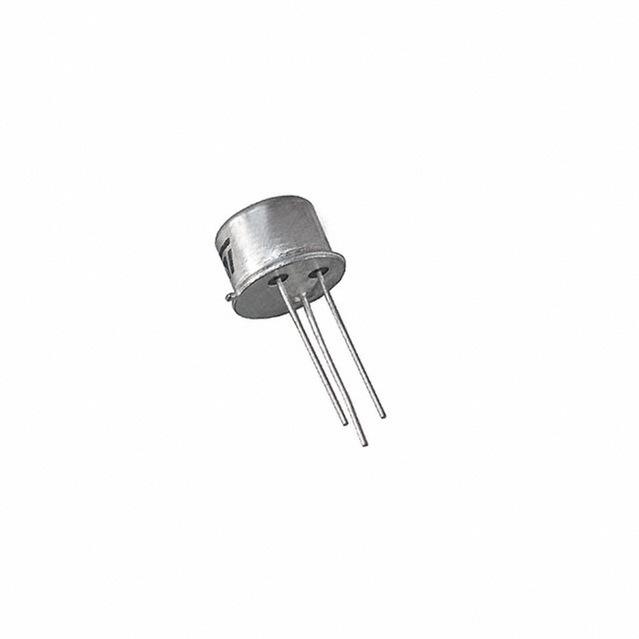

Image is for your reference only,please check specifications for details

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

2N1613 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-5-3
Voltage Rating (DC)	75.0 V
Current Rating	500 mA
Power Dissipation	800 mW
Breakdown Voltage (Collector to Emitter)	50 V
hFE Min	40 @150mA, 10V
Input Power (Max)	800 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	9.4 mm
Size-Width	9.4 mm
Size-Height	6.6 mm
Operating Temperature	-65℃ ~ 200℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
