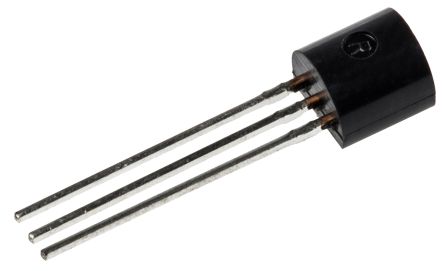

2N7000 - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC90050
Category:
MOSFET, MOSFET Transistor
Package:
TO-92-3
Datasheet:
Datasheet 3D Model
Description:
Small Signal MOSFET 60V 200mA 5Ω Single N-Channel TO-92, TO-92 (TO-226) 5.33mm Body Height, 10000-BLKBG
Stock Locations:
Availability:
1,577 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.2

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

2N7000 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	5 Ω
Power Dissipation	350 mW
Threshold Voltage	2.1 V
Drain to Source Voltage (Vds)	60 V
Breakdown Voltage (Drain to Source)	60 V
Input Capacitance (Ciss)	20pF @25V(Vds)
Input Power (Max)	400 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	400 mW
	Show
Size-Length	5.2 mm
Size-Width	4.19 mm
Size-Height	5.33 mm
Product Lifecycle Status	Active
Packaging	Bag
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
