**NPN Power Transistors, ON Semiconductor**
These ON Semiconductor transistors can amplify analog or digital signals. They can also switch DC or function as an oscillator.

Show

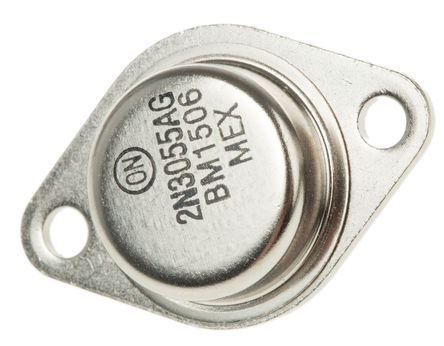

2N3055AG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-204-2
Frequency	6 MHz
Voltage Rating (DC)	60.0 V
Current Rating	15.0 A
Number of Positions	2 Position
Polarity	NPN
Power Dissipation	115 W
Gain Bandwidth Product	6 MHz
Breakdown Voltage (Collector to Emitter)	60 V
Thermal Resistance	1.52℃/W (RθJC)
Continuous Collector Current	15A
hFE Min	10 @4A, 2V
hFE Max	70
Input Power (Max)	115 W
DC Current Gain (hFE)	70
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	115000 mW
	Show
Size-Length	39.37 mm
Size-Width	26.67 mm
Size-Height	8.51 mm
Material	Silicon
Operating Temperature	-65℃ ~ 200℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
