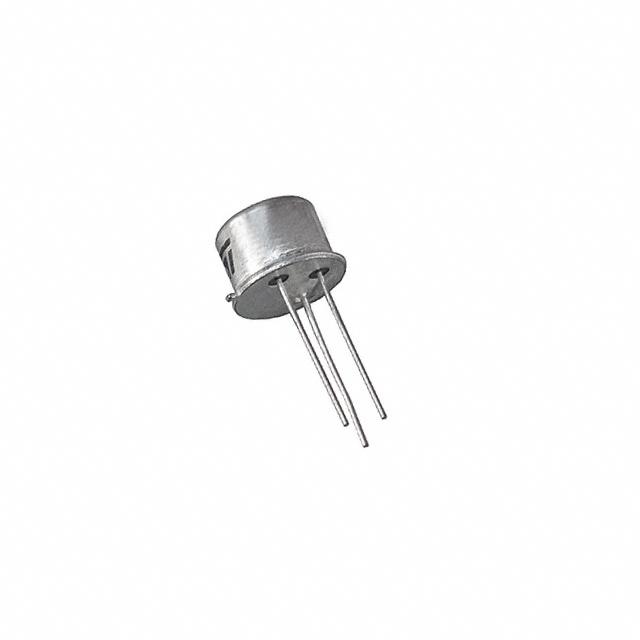

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

2N3440 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-39-3
Frequency	15 MHz
Voltage Rating (DC)	300 V
Current Rating	1.00 A
Power Rating	1 W
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	10000 mW
Breakdown Voltage (Collector to Emitter)	250 V
hFE Min	40 @20mA, 10V
hFE Max	160
Input Power (Max)	1 W
DC Current Gain (hFE)	160
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	10000 mW
	Show
Size-Length	9.4 mm
Size-Width	9.4 mm
Size-Height	6.6 mm
Material	Silicon
Operating Temperature	200℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Bag
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
