Description

The Power 25A 150 V Bipolar NPN Transistor is designed for use in industrial-military power amplifier and switching circuit applications.
Features
---
|
High Collector-Emitter Sustaining Voltage
VCEO(sus) = 100 Vdc (Min) 2N6338
VCEO(sus) = 150 Vdc (Min) - 2N6341
High DC Current Gain
hFE = 30 - 120 @ IC = 10 Adc
hFE = 12 (Min) @ IC = 25 Adc
Low Collector-Emitter Saturation Voltage
VCE(sat) = 1.0 Vdc (Max) @ IC = 10 Adc
Fast Switching Times @ IC = 10 Adc
tr = 0.3 µs (Max)
ts = 1.0 µs (Max)
tf = 0.25 µs (Max)
These devices are available in Pb-free package(s). Specifications herein apply to both standard and Pb-free devices. Please see our website at www.onsemi.com for specific Pb-free orderable part numbers, or contact your local ON Semiconductor sales office or representative.

Show

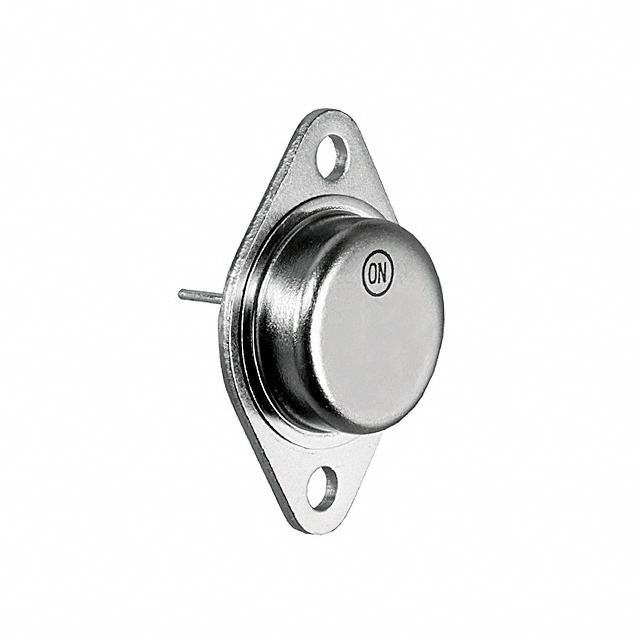

2N6338 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-204
Voltage Rating (DC)	100 V
Current Rating	25.0 A
Polarity	NPN
Breakdown Voltage (Collector to Emitter)	100 V
Continuous Collector Current	25A
hFE Min	30 @10A, 2V
hFE Max	120
Input Power (Max)	200 W
	Show
Operating Temperature	-65℃ ~ 200℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tray
Minimum Packing Quantity	100
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
