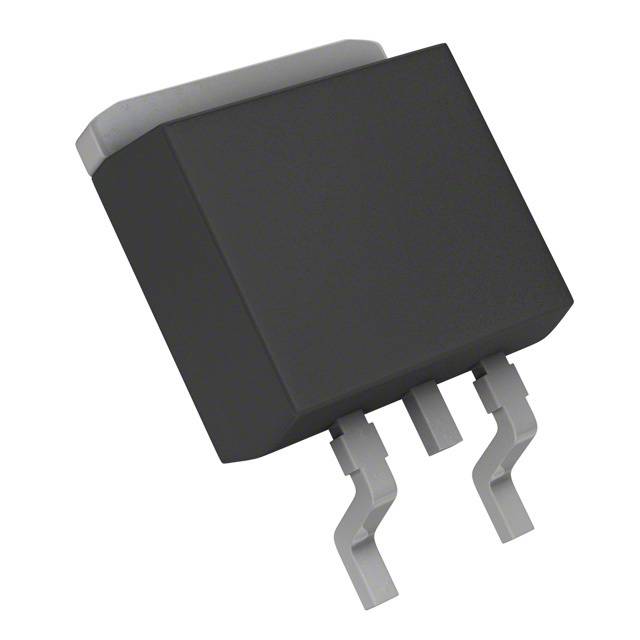

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

high-voltage switching transistor telephone, power supply Features high breakdown voltage； low saturation voltage； high switching speed

Show

2SA1807TLP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	TO-252-3
Polarity	PNP
Breakdown Voltage (Collector to Emitter)	600 V
Continuous Collector Current	1A
hFE Min	82 @100mA, 5V
hFE Max	180
Input Power (Max)	1 W
Power Dissipation (Max)	1 W
	Show
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
