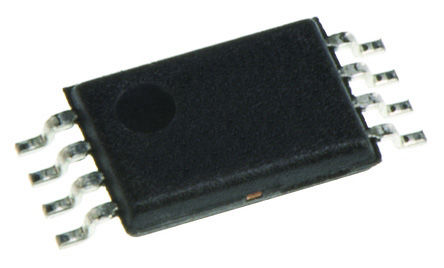

Image is for your reference only,please check specifications for details

TLC372CPW - TI
Manufacturer:
TI
ManyChip's Part#:
MC18111138
Category:
Comparator, Analog Comparator IC
Package:
TSSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TLC372CPW Analogue Comparator, Dual, Differential, 2, 200ns, 3V to 16V, TSSOP, 8Pins
Stock Locations:
Availability:
326 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.78

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLC372CPW is a dual general purpose LinCMOS™ Differential Comparator fabricated using LinCMOS™ technology. It is designed to operate from a single power supply. Operation from dual supplies is also possible if the difference between the two supplies is 2 to 18V. It features extremely high input impedance, allowing direct interfacing with high-impedance sources. The outputs are N-channel open-drain configurations and can be connected to achieve positive-logic wired-AND relationships. The TLC372 has internal electrostatic discharge protection circuits and has been classified with a 1000V ESD rating using human body model testing. However, care should be exercised in handling this device as exposure to ESD may result in a degradation of the device parametric performance. The TLC372C is characterized for operation from 0 to 70°C.
200ns Fast response time for TTL-level input step
Built-in ESD protection
10¹²R High input impedance
5pA Extremely low input bias current
Ultrastable low input offset voltage
Input offset voltage change at worst-case input conditions typically 0.23µV/month
Common-mode input voltage range includes ground
Output compatible with TTL, MOS and CMOS
Pin-compatible with LM393
Green product and no Sb/Br

Show

TLC372CPW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TSSOP-8
Supply Voltage (DC)	3.00V (min)
Output Current	20 mA
Supply Current	0.3 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Input Offset Voltage	5 mV
Input Bias Current	0.005 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	3V ~ 16V
Supply Voltage (Max)	16 V
Supply Voltage (Min)	3 V
	Show
Size-Length	3 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/06/15
