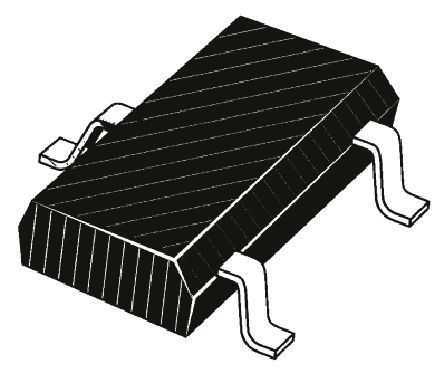

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

2SB1708TL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Frequency	200 MHz
Voltage Rating (DC)	-30.0 V
Current Rating	-3.00 A
Power Rating	0.5 W
Number of Positions	3 Position
Polarity	PNP
Power Dissipation	500 mW
Breakdown Voltage (Collector to Emitter)	30 V
Continuous Collector Current	3A
hFE Min	270
hFE Max	270 @200mA, 2V
Input Power (Max)	500 mW
DC Current Gain (hFE)	270
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500 mW
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	0.85 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
