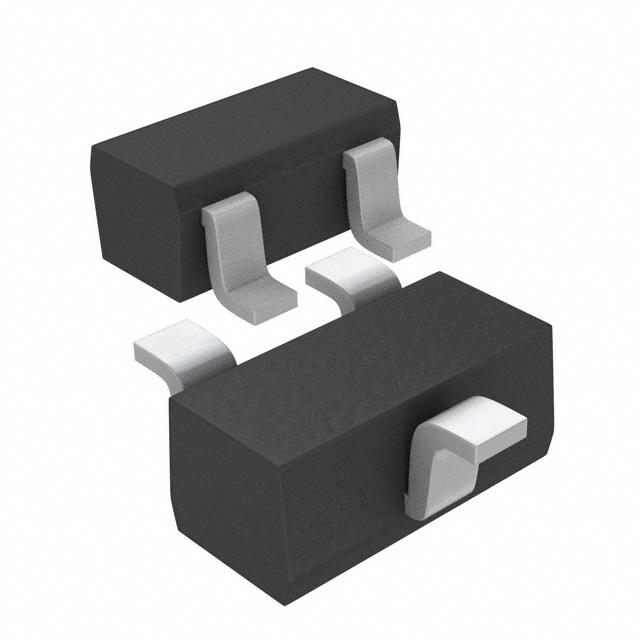

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

2SC5585TL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-416-3
Frequency	320 MHz
Voltage Rating (DC)	12.0 V
Current Rating	500 mA
Power Rating	0.15 W
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	150 mW
Gain Bandwidth Product	320 MHz
Breakdown Voltage (Collector to Emitter)	12 V
Continuous Collector Current	0.5A
hFE Min	270 @10mA, 2V
hFE Max	680
Input Power (Max)	150 mW
DC Current Gain (hFE)	270
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	150 mW
	Show
Size-Length	1.6 mm
Size-Width	0.8 mm
Size-Height	0.7 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
