Description

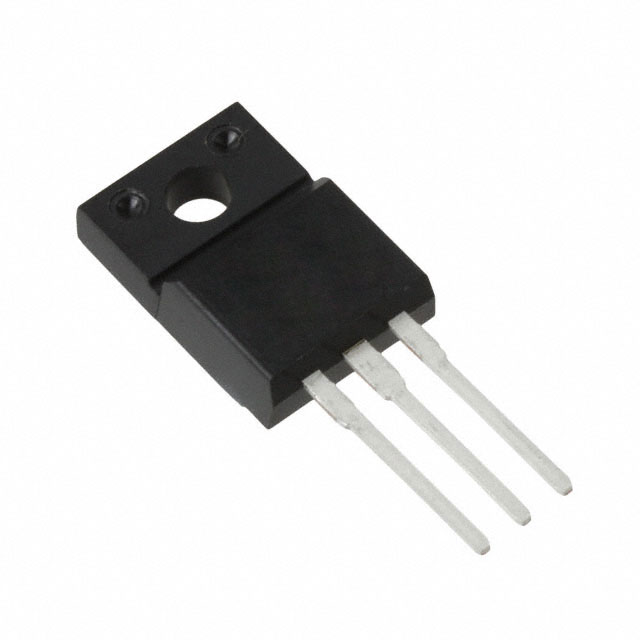

2SJ652 is a P-Channel Power MOSFET, -60V, -28A, 38mΩ, TO-220F-3SG for General-purpose Swiching Device Application. It features low on-resistance, ultra-high speed switching and 4.0V drive.
Features
---
|
Low on-resistance 28.5mΩ (typ)
Input capacitance Ciss = 4360pF (typ)
4.0V drive

Show

2SJ652 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	55.5 mΩ
Polarity	P-CH
Power Dissipation	2 W
Threshold Voltage	-2.6V
Drain to Source Voltage (Vds)	60 V
Continuous Drain Current (Ids)	-28A
Input Capacitance (Ciss)	4360pF @20V(Vds)
Operating Temperature (Max)	150 ℃
Power Dissipation (Max)	2W (Ta), 30W (Tc)
	Show
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Bulk
Minimum Packing Quantity	50
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
