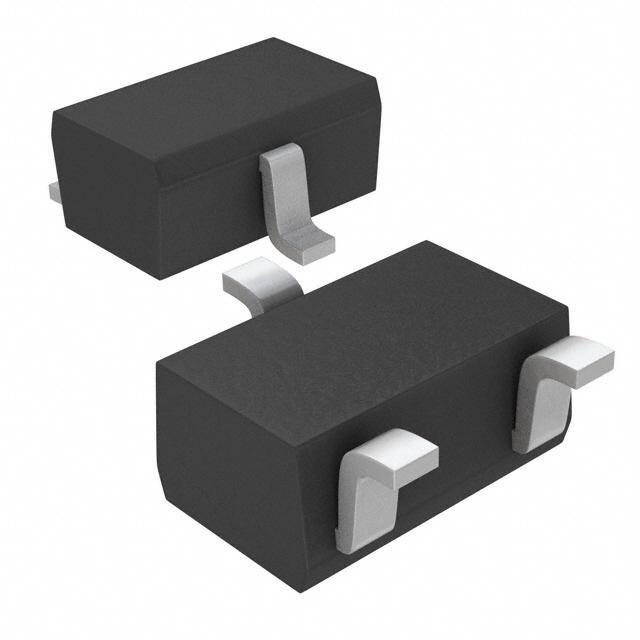

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 2SK3018T106 is a N-channel silicon MOSFET offers 30V drain source voltage and ±100mA continuous drain current. It is suitable for use in interfacing, switching applications.
- Low ON-resistance
- Fast switching speed
- 2.5V Low voltage drive makes this device ideal for portable equipment
- Drive circuits can be simple
- Parallel use is easy
2SK3018T106 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-323 |
| Voltage Rating (DC) | 30.0 V |
| Current Rating | 100 mA |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 8 Ω |
| Polarity | N-Channel |
| Power Dissipation | 200 mW |
| Threshold Voltage | 1.5 V |
| Drain to Source Voltage (Vds) | 30 V |
| Breakdown Voltage (Drain to Source) | 30.0 V |
| Continuous Drain Current (Ids) | 100 mA |
| Rise Time | 35 ns |
| Input Capacitance (Ciss) | 13pF @5V(Vds) |
| Input Power (Max) | 200 mW |
| Fall Time | 80 ns |
| Operating Temperature (Max) | 150 ℃ |
| Power Dissipation (Max) | 200mW (Ta) |
| Show | |
| Operating Temperature | 150℃ (TJ) |
| Product Lifecycle Status | Not For New Designs |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
