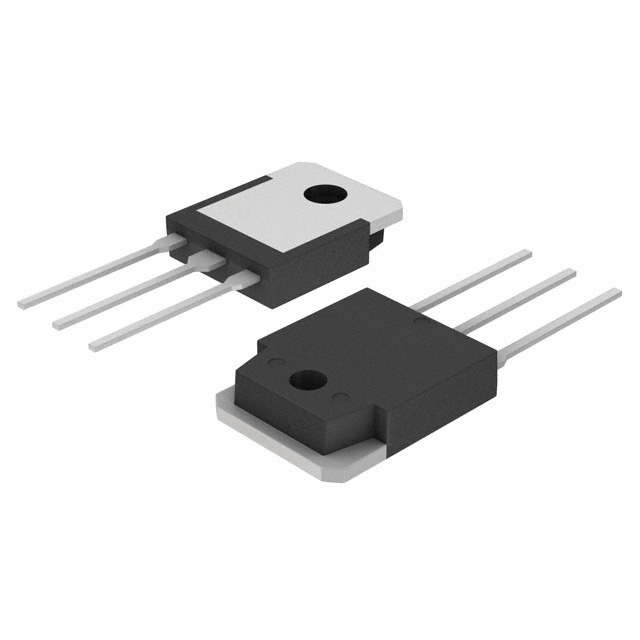

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

2SK4124 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-3-3
Number of Channels	1 Channel
Polarity	N-CH
Power Dissipation	2.5 W
Drain to Source Voltage (Vds)	500 V
Continuous Drain Current (Ids)	20A
Input Capacitance (Ciss)	1200pF @30V(Vds)
Operating Temperature (Max)	150 ℃
Power Dissipation (Max)	2.5W (Ta), 170W (Tc)
	Show
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
