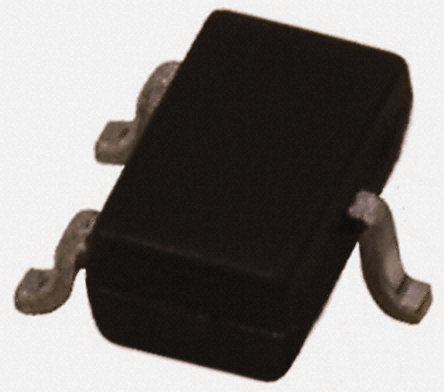

Image is for your reference only,please check specifications for details

2V7002WT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC3993830
Category:
MOSFET, MOSFET Transistor
Package:
SC-70-3
Datasheet:
Datasheet 3D Model
Description:
Small Signal MOSFET 60V 340mA 1.6Ω Single N-Channel SC-70 Power MOSFET 60V, 340mA, 1.6Ω, N-Channel., SC-70 (SOT-323) 3 LEAD, 3000-REEL
Stock Locations:
Availability:
328 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.04

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

2V7002WT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-70-3
Halogen Free Status	Halogen Free
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	1.19 Ω
Polarity	N-Channel
Power Dissipation	280 mW
Threshold Voltage	2.5 V
Drain to Source Voltage (Vds)	60 V
Rise Time	9 ns
Input Capacitance (Ciss)	24.5pF @20V(Vds)
Fall Time	29 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	280 mW
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	0.9 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20
