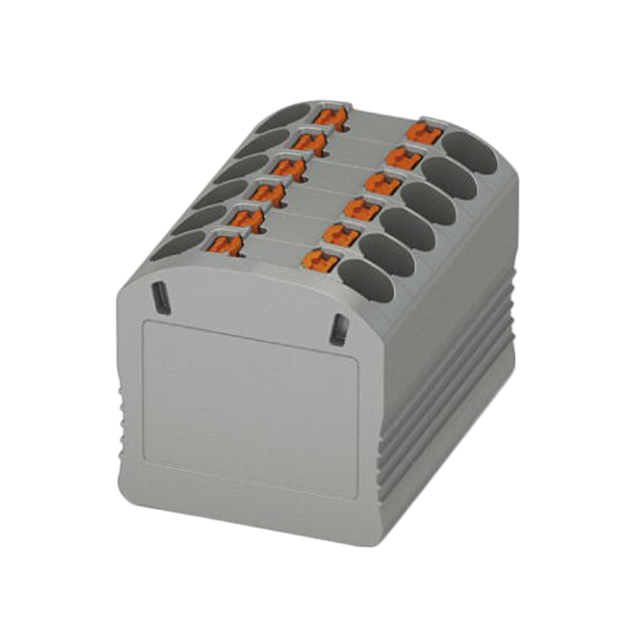

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 12 Position Terminal Block Gray Middle 24.9mm
3002758 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Contacts | 12 Contact |
| Wire Gauge | 14AWG ~ 26AWG |
| Number of Rows | 2 Row |
| Number of Circuits | 6 Circuit |
| Number of Positions | 12 Position |
| Current Rating (Max) | 17.5 A |
| Operating Temperature (Max) | 130 ℃ |
| Operating Temperature (Min) | -60 ℃ |
| Voltage Rating (Max) | 450 V |
| Operating Voltage (Max) | 450 V |
| Show | |
| Size-Length | 21 mm |
| Size-Width | 25.2 mm |
| Size-Height | 17.7 mm |
| Housing Color | Gray |
| Color | Gray |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status |
