Description

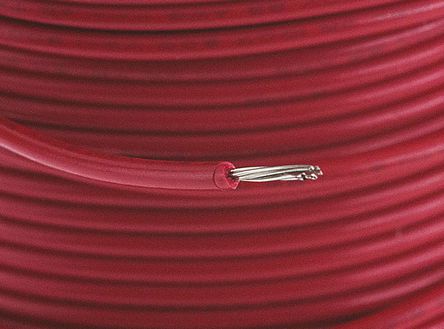

The 3051 RD005 is a 100ft 22AWG 300V red Hook-up Wire with stranded tinned copper conductor and PVC insulation. This wire has the ability to withstand wear and abrasion, electrical properties and resistance to oil, solvents and chemicals. It provides excellent uniformity for easy handling, stripping and termination.
5.5lbs Maximum pull tension
0.41mm Insulation thickness
General-purpose insulation
Excellent flame resistance
REACH regulation (EC 1907/2006)

Show

3051 RD005 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Wire Gauge	22 AWG
Voltage Rating (DC)	300 V
Flammability Rating	UL VW-1
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	300 VAC
Voltage Rating	300 V
	Show
Size-Length	30.5 m
Color	Red
Insulation Material	PVC
Operating Temperature	-40℃ ~ 105℃
Conductor Material	Tinned Copper
Jacket Material	PVC
Product Lifecycle Status	Active
Packaging	Coil
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2013/06/20
