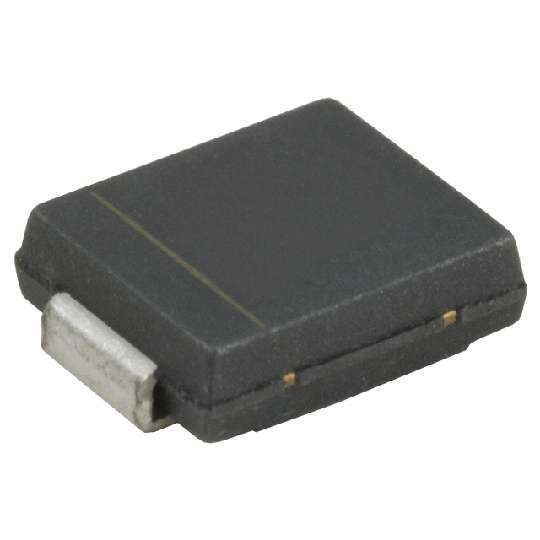

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The 30BQ040PbF surface mount Schottky rectifier has
- been designed for applications requiring low forward drop
- and small foot prints on PC boards. Typical applications are
- in disk drives, switching power supplies, converters,
- freewheeling diodes, battery charging, and reverse battery
- protection.
- FEATURES
- • Small foot print, surface mountable
- • Very low forward voltage drop
- • High frequency operation
- • Guard ring for enhanced ruggedness and long term reliability
- • Lead (Pb)-free (“PbF” suffix)
- • Designed and qualified for industrial level
30BQ040 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | DO-214AB |
| Voltage Rating (DC) | 40.0 V |
| Current Rating | 4.00 A |
| Capacitance | 230 pF |
| Output Current | ≤3.00 A |
| Forward Voltage | 530mV @3A |
| Polarity | Standard |
| Maximum Forward Voltage (Max) | 530mV @3A |
| Show | |
| Product Lifecycle Status | Unknown |
| Packaging | Bulk |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
