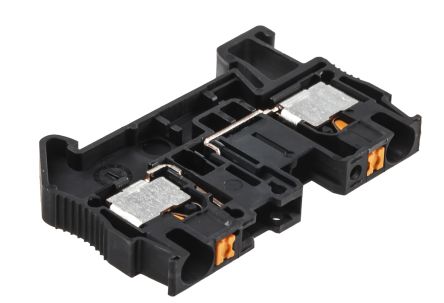

Image is for your reference only,please check specifications for details
- 3208943 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC63538316
-
Category:Terminal Block, Connector Terminal
-
Datasheet:Datasheet 3D Model
-
Description:"Phoenix 3208943 Fuse Modular Terminal Block 10A, 15A Max, 400V, Push-in Connection, Polyamide, Black, "
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Product Features**
- * The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
- * The compact design and front connection enable wiring in a confined space
- * In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
3208943 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Contacts | 2 Contact |
| Wire Gauge | 10AWG ~ 24AWG |
| Current Rating | 10 A |
| Number of Rows | 2 Row |
| Number of Circuits | 1 Circuit |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 2 Position |
| Current Rating (Max) | 10 A |
| Voltage Rating (Max) | 400 V |
| Voltage Rating | 400 V |
| Operating Voltage (Max) | 400 V |
| Show | |
| Size-Length | 56 mm |
| Size-Width | 6.2 mm |
| Size-Height | 36.5 mm |
| Housing Color | Black |
| Color | Black |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536904000 |
| ECCN Code | EAR99 |
