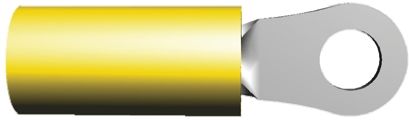

Image is for your reference only,please check specifications for details
- 324918 - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC18244930
-
Category:Terminal
-
Package:300
-
Datasheet:Datasheet 3D Model
-
Description:TE Connectivity PIDG series Insulated Tin Plated Crimp Ring Terminal, M5 Stud Size, 2.6mm to 6.6mm, 12AWG to
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Pre-Insulated Diamond Grip Ring Tongue Terminals
324918 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Case/Package | 300 |
| Gender | Female |
| Wire Gauge | 10AWG ~ 12AWG |
| Contact Plating | Tin |
| Orientation | Straight |
| Termination Style | Ring Lug, Ring |
| Voltage Rating (Max) | 300 VAC |
| Voltage Rating | 300 V |
| Show | |
| Size-Length | 26.72 mm |
| Size-Width | 7.92 mm |
| Size-Thickness | 1.02 mm |
| Size-Inner Diameter | 5.00 mm |
| Color | Yellow |
| Contact Material | Copper |
| Material | Copper |
| Insulation Material | Nylon |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| HTS Code | 8535904000 |
| ECCN Code | EAR99 |
