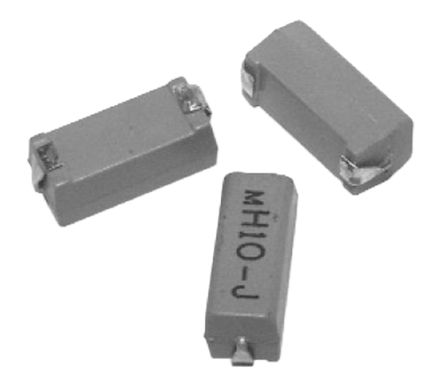

- 3615A100K - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC40952613
-
Category:Inductor Surface Mount
-
Package:13mm x 5mm x 5.3mm
-
Datasheet:Datasheet 3D Model
-
Description:Inductor RF Unshielded Wirewound 10uH 10% 7.9MHz 35Q-Factor Iron 620mA 600mOhm DCR T/R
-
Stock Locations:
-
Availability:302 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.44
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 3615 series SMD High-current Inductor with solder coated copper termination. This is a high-current, wound inductor, based on phenolic, iron or ferrite cores (depending on the value required). Values from 0.1 to 2.7µH have a phenolic core, 3.3 to 100µH an iron core and 120 to 1000µH a ferrite core.
- High-current winding
- Suitable for dip and wave solder
- 1000MR Minimum insulation
- -55 to 100°C Temperature range
3615A100K Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | 13mm x 5mm x 5.3mm |
| Current Rating | 620 mA |
| Capacitance Tolerance | ±10 % |
| Inductance | 10 µH |
| Self Resonant Frequency | 42 MHz |
| Inductance Tolerance | ±10 % |
| Test Frequency | 7.9 MHz |
| DC Resistance (DCR) | ≤600 mΩ |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Resistance (DC Max) | 0.6 Ω |
| Show | |
| Size-Length | 13 mm |
| Size-Width | 5 mm |
| Size-Height | 5.3 mm |
| Operating Temperature | -55℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | |
| HTS Code | 8536694040 |
| ECCN Code | EAR99 |
