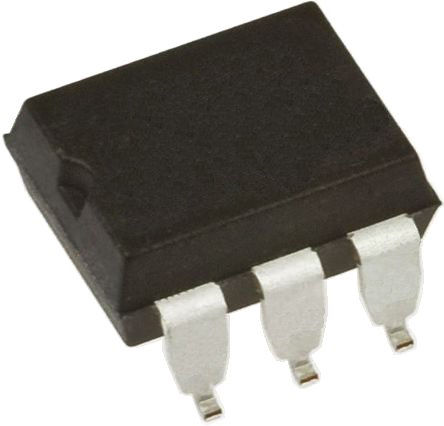

4N32SM - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC13002200
Category:
Optocoupler, Optoisolator
Package:
DIP-6
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR 4N32SM Optocoupler, Darlington Output, 1Channel, DIP, 6Pins, 80mA, 2.5kV, 500%
Stock Locations:
Availability:
1,651 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.22

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 4N32SM is a 1-channel 6-pin general purpose Photodarlington Optocoupler for use with low power logic circuits and solid state relays. It has a gallium arsenide infrared emitter optically coupled to a silicon planar photodarlington.
High sensitivity to low input drive current
Meets or exceeds all JEDEC registered specifications
850V Peak working insulation voltage
6000V Highest allowable over voltage

Show

4N32SM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	DIP-6
Output Voltage	30.0 V
Number of Channels	1 Channel
Number of Positions	6 Position
Forward Voltage	1.2 V
Input Current	80 mA
Power Dissipation	0.25 W
Rise Time	5 µs
Isolation Voltage	2.5 kV
Forward Current	80 mA
Output Voltage (Max)	30 V
Input Current (Min)	3 A
Reverse Breakdown Voltage	3 V
Maximum Forward Voltage (Max)	1.5 V
Forward Current (Max)	80 mA
Fall Time	100 µs
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	250 mW
	Show
Size-Width	6.6 mm
Size-Height	3.53 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
