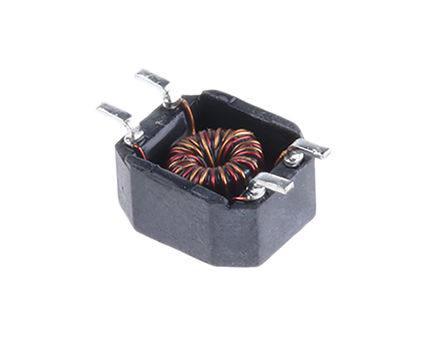

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 50105C is a 700mA surface-mount Common Mode Choke designed to attenuate up to 100MHz common mode noise where line filtering is required. Backward compatible with Sn/Pb soldering systems and the pin is of pure tin dip finish.
- J-STD-020C Reflow
- UL94V-0 Flammability rating
50105C Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | 7mm x 6mm x 3.5mm |
| Current Rating | 700 mA |
| Inductance | 1 mH |
| Inductance Tolerance | -30% ~ 50% |
| Test Frequency | 100 kHz |
| DC Resistance (DCR) | ≤300 mΩ |
| Current Rating (Max) | 700 mA |
| Current Rating (DC) | 700 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 300 mΩ |
| Show | |
| Size-Length | 9.3 mm |
| Size-Width | 5.9 mm |
| Size-Height | 4.4 mm |
| Weight | 0.3 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
