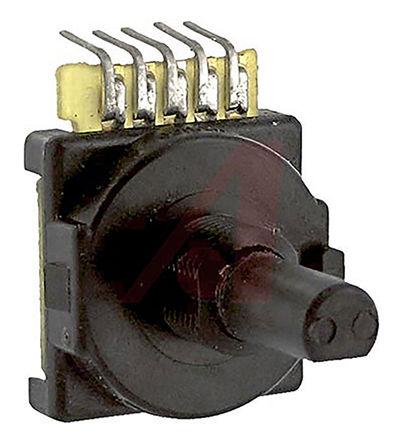

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Encoder, 5 Ohms Contact Resistance, 1000 VAC Dielectric Withstanding Voltage
The series 510 controls are manually operated, rotary, mechanical encoders that provide a two-bit gray code for relative reference applications and a four-bit gray code for absolute electrical reference applications. In bit-bit gray code, the L channel leads the R channel by 90° electrically in the CW position. It features continuous electrical travel and has a rotational life of more that 100,000 shaft revolutions with a positive detent feel. This series is small-sized (0.83" sq. × 0.343" deep) and commonly used in limited-space, panel-mounted applications where the need for costly front-panel displays can be completely eliminated. Direct digital output, which eliminates A/D converts. Up to 36 electrical and mechanical detented positions.* Operating Temperature:** -40°C to +105°C. ** Terminals:** PC type on 0.100" grid lines. ** Terminal Mounting:** 0.615" from center. Molding compound used for molded housing/bushing and shaft has a UL94V-2 rating. Program code board is glass epoxy, copper clad with nickel plating. Horizontal or vertical mountings relative to the PC board are available as a special order.
The 510 series controls are manually operated, rotary, mechanical encoders that provide a two- bit gray code for relative reference applications and a four-bit gray code for absolute electrical reference applications.

Show

510E1A48F416PC Specifications
