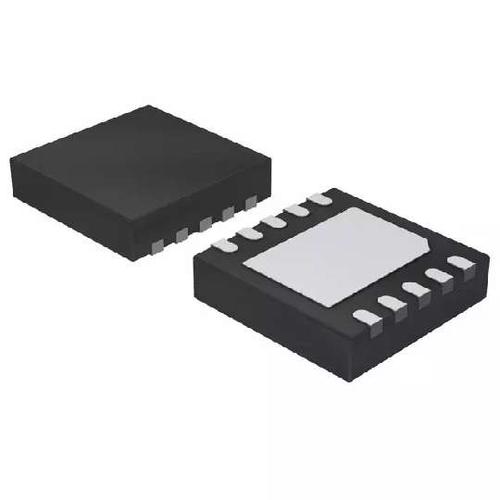

Image is for your reference only,please check specifications for details
- NCP1532MUAATXG - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC28950663
-
Category:DC to DC Converter
-
Package:UDFN-10
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 2.7V to 5.5V Step Down Dual-Out 0.9V to 3.3V 1.6A 10Pin UDFN T/R
-
Stock Locations:
-
Availability:248 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.39
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Buck Switching Regulator IC Positive Adjustable 0.9V 2 Output 1.6A 10-UFDFN Exposed Pad
NCP1532MUAATXG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | UDFN-10 |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 2 Output |
| Output Voltage | 0.9V ~ 3.3V |
| Output Current | 1.6 A |
| Number of Positions | 10 Position |
| Quiescent Current | 50 µA |
| Switching Frequency | 2.25 MHz |
| Topology | Step-Down |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.7 V |
| Output Voltage (Max) | 3.3 V |
| Output Voltage (Min) | 0.9 V |
| Output Current (Max) | 1.6 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.7 V |
| Input Voltage | 2.7V ~ 5.5V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
