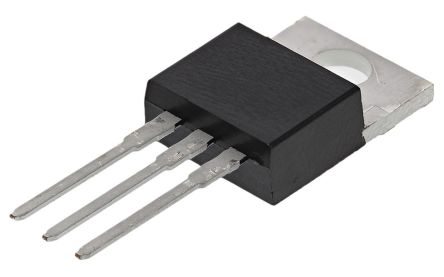

Image is for your reference only,please check specifications for details
- BTS117BKSA1 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC22689210
-
Category:Power Distribution
-
Package:TO-220-3
-
Datasheet:Datasheet 3D Model
-
Description:Power Switch Lo Side 1Out 3.5A 0.09Ω Automotive 3Pin(3+Tab) TO-220 Tube
-
Stock Locations:
-
Availability:261 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 5.16
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The BTS117 is an N channel vertical Power FET in Smart SIPMOS® technology. Providing embedded protection functions.
- Logic level input
- Input protection (ESD)
- Thermal protection with latch
- Overload protection
- Short-circuit protection
- Overvoltage protection
- Current limitation
- Analog driving possible
- Green product
- AEC qualified
BTS117BKSA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 60.0 V |
| Output Current | 3.5 A |
| Number of Positions | 3 Position |
| Power Dissipation | 50 W |
| Output Current (Max) | 3.5 A |
| Output Current (Min) | 3.5 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 50000 mW |
| Input Voltage | 60 V |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 4.4 mm |
| Size-Height | 15.65 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
