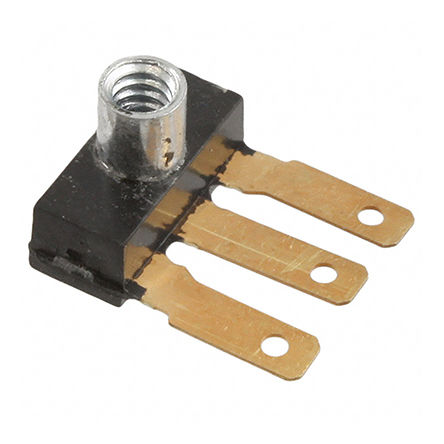

Image is for your reference only,please check specifications for details

55SS16 - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC135651710
Category:
Hall Effect Sensor
Package:
Threaded Boss, Quick Connect Terminals
Datasheet:
Datasheet 3D Model
Description:
Sensor, Magnetic, Hall-Effect, Unipolar, 4.5-9VDC, Through Hole, 4mA
Stock Locations:
Availability:
355 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 39.88

Updated at 30/05/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 55SS16 is a rectangular threaded boss hall-effect digital Position Sensor with quick connect terminals. It provides unipolar type magnetic actuation.
Sink output type
Male 0.093 x 0.010" quick connect terminal termination type
0.5µs Maximum switching time rise (10 to 90%)
0.5µs Maximum switching time fall (90 to 10%)

Show

55SS16 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	Threaded Boss, Quick Connect Terminals
Frequency	100 kHz
Current Rating	0.02 A
Switching Current	20 mA
Output Voltage (Min)	200 mV
Output Current (Max)	20 mA
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 9V
Supply Voltage (Max)	9 VDC
Supply Voltage (Min)	4.5 VDC
	Show
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
