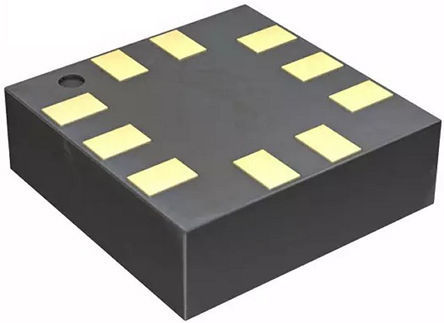

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LPS22HB is an ultra-compact piezoresistive absolute pressure sensor which functions as a digital output barometer. The device comprises a sensing element and an IC interface which communicates through I2C or SPI from the sensing element to the application.
The sensing element, which detects absolute pressure, consists of a suspended membrane manufactured using a dedicated process developed by ST.
The LPS22HB is available in a full-mold, holed LGA package (HLGA). It is guaranteed to operate over a temperature range extending from -40 °C to +85 °C. The package is holed to allow external pressure to reach the sensing element.
**Key Features**
260 to 1260 hPa absolute pressure range
Current consumption down to 3 μA
High overpressure capability: 20x full-scale
Embedded temperature compensation
24-bit pressure data output
16-bit temperature data output
ODR from 1 Hz to 75 Hz
SPI and I²C interfaces
Embedded FIFO
Interrupt functions: Data Ready, FIFO flags, pressure thresholds
Supply voltage: 1.7 to 3.6 V
High shock survivability: 22,000 g
Small and thin package
ECOPACK® lead-free compliant

Show

LPS22HBTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	HLGA-10L
Supply Voltage (DC)	1.70V (min)
Supply Current	12 µA
Number of Positions	10 Position
Output Voltage (Max)	6.7 VDC
Output Voltage (Min)	5.7 VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.7V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.7 V
	Show
Size-Length	2 mm
Size-Width	2 mm
Size-Height	0.8 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
