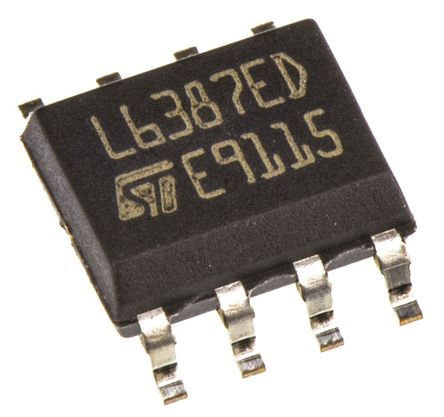

L6387ED - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC3874461
Category:
FET Driver
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
Driver; 400mA; 580V; 750mW; Channels:2; 400kHz; DIP8; Package: tube
Stock Locations:
Availability:
1,184 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.29

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L6387ED is a simple and compact high voltage Gate Driver manufactured with the BCD™ offline technology and able to drive a half-bridge of power MOS or IGBT device. The high-side (floating) section is enabled to work with voltage rail up to 600V. Both device outputs can independently sink and source 650 and 400mA respectively and cannot be simultaneously driven high thanks to an integrated interlocking function. The L6387E device provides two input pins and two output pins and guarantees the outputs toggle in phase with inputs. The logic inputs are CMOS/TTL compatible to ease the interfacing with controlling devices. The L6387E features the UVLO protection on the VCC supply voltage and integrates the bootstrap diode, allowing a more compact and reliable solution.
CMOS/TTL Schmitt-trigger inputs with hysteresis and pull-down
Internal bootstrap diode structure
Outputs in phase with inputs
Interlocking function
dV/dt immunity of ±50V/ns in full temperature range
50/30ns Rise/fall with 1nF load switching time

Show

L6387ED Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Frequency	0.4 MHz
Supply Voltage (DC)	5.50V (min)
Rise/Fall Time	50ns, 30ns
Number of Outputs	2 Output
Number of Positions	8 Position
Power Dissipation	750 mW
Rise Time	50 ns
Output Current (Max)	0.65 A
Fall Time	30 ns
Fall Time (Max)	30 ns
Fall Time (Max)	50 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-45 ℃
Power Dissipation (Max)	750 mW
Supply Voltage (Max)	17 V
Supply Voltage (Min)	5.5 V
	Show
Size-Length	4.9 mm
Size-Width	3.9 mm
Size-Height	1.25 mm
Operating Temperature	-45℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
